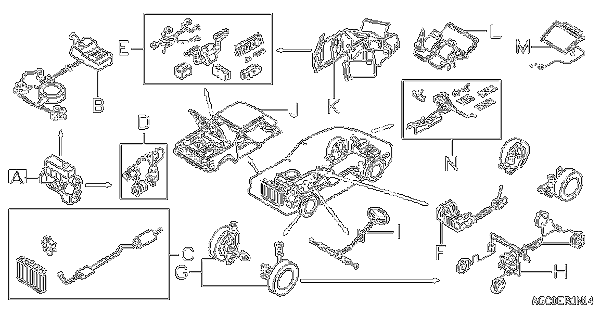

Click here to download the part diagram (pdf 4.15MB). (right click save target as)
Part Name
Part Number
Month/Year
Color Code
FUEL FILTER
16400 53J10
OIL FILTER
15208 70J00
WASHER,DRAIN
11026 01M02
HT LEADS
22450 54C27
REPAIR KIT DUST(p/s front hub side)
39241 63Y25
RADIATOR ASSY
21410 66Y01
RADIATOR ASSY
21410-63C00
ROTOR,HEAD
22157 54C01
CAP,DISTRIBUTOR
22162 53J00
PUMP-WATER ASSY
21010-54C00
LAMBDA SENSOR
22690-54C00
GASKET-ROCKER C
13270 53J05
GASKET-TURBO CH
14445 26E00
GASKET-EXHAUST
20691 58E01
GASKET
14415 17M00
GEARBOX OIL SEAL
38342 56E00
TRANSFERBOX OIL SEAL
33111-56E00
COIL LEAD
22450-53J11
ROTOR ARM
22157 54CO1
CV BOOT KIT(FRONT)
39241 63Y25
AIR FILTER
16546 3J400
SERV MAN VOL1 (ENG)
SM1E1N4BGO
SERV MAN VOL2
SM1E2N4BGO
HAND BRAKE SWITCH
36011 50Y00
FUEL CABLE THING
H4659 50A05
DISTRIBUTOR POWER TRANSISTOR
22020 53J10
IDLE AIR CONTROL VALVE AIR REGULATOR
22660-93L00
STRUT KIT-FRONT SUSPENSION, RH
54302-69C25
STRUT KIT-FRONT SUSPENSION, LH
54303-69C25
STRUT KIT-REAR SUSPENSION, RH
55302-69C25
STRUT KIT-REAR SUSPENSION, LH
55303-69C25
Front Ornament (P Badge)
62311 62892-62C00
10/90 -10/92
Front Ornament
62311 62892-73C00
10/92 - 01/93
Front Ornament
62311 62892-73C60
01/93
Rear Air Spoiler Assy-Roof
96030R 96030-54C25
10/90
KH3
Rear Air Spoiler Assy-Roof
96030R 96030-54C26
10/90
AJ4
Rear Air Spoiler Assy-Roof
96030R 96030-54C27
10/90 - 05/94
TJ1
Rear Air Spoiler Assy-Roof
96030R 96030-54C28
10/90 - 10/92
KJ7
Rear Air Spoiler Assy-Roof
96030R 96030-54C85
10/90
531
Rear Air Spoiler Assy-Roof
96030R 96030-54C27
10/92
FM0
Tow Hole Cover
62228 62228-54C00
10/90
AJ4
Tow Hole Cover
62228 62228-54C02
10/90
KH3
Tow Hole Cover
62228 62228-54C03
10/90
TJ1
Tow Hole Cover
62228 62228-54C04
10/90
KJ7
Tow Hole Cover
62228 62228-54C05
10/90
531
Tow Hole Cover
62228 62228-74C02
10/92
FM0
Front Bumper (Fascia Kit)
62650S 62022-54C25
10/90 - 05/92
AJ4, KJ7, 531
Front Bumper (Fascia Kit)
62650S 62022-54C26
10/90 - 05/92
KH3, TJ1
Bonnet (No vents just Holes)
65100 65100-653C0
All
Bonnet ventt Main (Air Intake)
65815 65852-54C00
All
Bonnet vent (Louver) RH
65810J 65832-54C00
10/90
AJ4
Bonnet vent (Louver) RH
65810J 65832-54C02
10/90
KH3
Bonnet vent (Louver) RH
65810J 65832-54C03
10/90
TJ1
Bonnet vent (Louver) RH
65810J 65832-54C04
10/90 - 10/92
KJ7
Bonnet vent (Louver) RH
65810J 65832-54C05
10/90
531
Bonnet vent (Louver) RH
65810J 65832-54C08
10/92
FM0
Bonnet vent (Louver) LH
65811J 65833-54C00
10/90
AJ4
Bonnet vent (Louver) LH
65811J 65833-54C02
10/90
KH3
Bonnet vent (Louver) LH
65811J 65833-54C03
10/90
TJ1
Bonnet vent (Louver) LH
65811J 65833-54C04
10/90 - 10/92
KJ7
Bonnet vent (Louver) LH
65811J 65833-54C05
10/90
531
Bonnet vent (Louver) LH
65811J 65833-54C08
10/92
FM0
Front Grille Kit
62301 62310-54C25
10/90
AJ4
Front Grille Kit
62301 62310-54C27
10/90
KH3
Front Grille Kit
62301 62310-54C28
10/90
TJ1
Front Grille Kit
62301 62310-54C29
10/90
KJ7
Front Grille Kit
62301 62310-54C91
10/90
531
Rear Number Plate surround
90810M 90810-62C10
10/90 - 05/92
Rear Number Plate surround
90810M 90810-62C00
05/92
Rear Bumper (Fascia Kit)
85010S 85022-50C25
10/90 - 05/92
Rear Bumper (Fascia Kit)
85010S 85022-50C26
10/92
Rear Window (Glass)
90313 90300-50C01
Air Filter element replacement
16546 16546-V0100
Air Filter (Air Box)
16500 16500-54C10
MAF (Mass Air Flow Meter)
22680 22680-54C00
Radiator Assem
21400 21410-63C00
Radiator Hose (Lower)
21503 21503-54C01
Radiator Hose (Upper)
21501 21501-54C00
Front Strut Kit (RH) - No ABS
54302K 54302-69C25
10/90 - 05/92
Front Strut Kit (RH) - With ABS
54302K 54302-69C26
10/90 - 05/92
Front Strut Kit (RH) - No ABS
54302K 54302-69C27
05/92
Front Strut Kit (RH) - With ABS
54302K 54302-69C28
05/92
Front Strut Kit (LH) - No ABS
54303K 54303-69C25
10/90 - 05/92
Front Strut Kit (LH) - With ABS
54303K 54303-69C26
10/90 - 05/92
Front Strut Kit (LH) - No ABS
54303K 54303-69C27
05/92
Front Strut Kit (LH) - With ABS
54303K 54303-69C28
05/92
Rear Stabilizer
56230 56230-69C00
Rear Strut Kit (RH)
55302K 55302-59C25
Rear Strut Kit (LH)
55303K 55303-69C25
Brake Rotor Disc (Front)
40207 40206-54C01
Front Wheel Bearing (NSK)
40210 40210-50Y00
Front Wheel Bearing (NTN)
40210 40210-50Y05
Prop Shaft Assy
37000 37000-54C05
Clutch Slave Cylinder Kit
30620 30620-80E20
Clutch Tube Assy (MastertoSlave)
30650 30850-63C00
Clutch Release Bearing
30502 30502-0W720
Clutch Master Cylinder Kit
30610 30610-63C52
Clutch Fluid Reservoir (inc Braket)
30609 30617-63C00
Transfer Assembley
32010M 32010-54C18
Front Differential
38711 38411-56E00
Bearing - Diff Side
38440N 38440-56E00
Front Driveshaft Kit (LH) (No ABS)
39101 39101-63Y01
Front Driveshaft Kit (LH) (With ABS)
39101 39101-63Y11
Front Driveshaft Kit (RH) (No ABS)
39100M 39100-63Y01
Front Driveshaft Kit (RH) (With ABS)
39100M 39100-63Y11
Power Steering Pump Kit
49110 49110-54C00
Side Skirt End Cap (RH)
76856-50C00
Side Skirt End Cap (LH)
76857-50C00
Umbrella
96546-76M00
Heater Control lightbulb
25196-89905
Thermostat
21200-53J00
oil pressure sender
V507032J00
oil seal on the back of the transfer box (prop shaft)
3314256E00
drop resistor
22698 54c00
Overhaul Gasket set
10101 - 54C26
Valve stem oil seals
N13207D4201
N1320753F00
Cylinder head bolts
11056-54C00
Inlet manifold gasket
16175-54c00
Exhaust manifold gasket
14036-53j00
main bearings
12207-54c00
Crank thrust washer
12280-60j00
front crank seal
13510-v7200
rear crank seal
12279-18v00
Pulley Belt - Water Pump/Power Steering
Nissan 11950 54C00
Bosch 4PK920 or 4PK919
Pulley Belt - Alternator (No A/C)
Nissan AY140-40830
Bosch 5PK835 or 4PK830
Pulley Belt - Alternator/Air Conditioner
Nissan 11920 53J00
Bosch 6PK 1035
Standard clutch plate
30100-79E14
Heater Control illumination:
N2486035F01 N/STK SOCKET & BULB A 1
N2754550J00 N/STK LAMP ASSY-HEATE 2
N2754550J05 N/STK LAMP ASSY-HEATE 1
Aerial Mast
28215-69C00
Alternator
23100-64J00
Badge - GTIR
90896-50C08
Badge - P
62892-50C00
CV Boot Kit (Pair)
48203-53Y25
CV Boot Kit (Drivers Inside)
39741-55E28
CV Boot Kit (Drivers Outside)
39241-63Y25
Clutch Fork Boot
30542-03E10
Clutch Master Cylinder Kit
30611-2T025
Clutch Slave Cylinder
30620-80E61
Coil (Ignition)
22433-55S10
Coil Transistor
22433-53J20
Fan Resistor
N2715-00W014
Fuel Cap
17251-J7600
Fuel Filter (Without ABS)
16400-41B05
Fuel Filter (With ABS)
16400-53J10
Gasket (Metal) Turbo to Dump Pipe
15208-53J00
Gasket - Engine Kit
10101-54C26
Gasket - Manifold (Throttle Bodies)
14035-54C00
Gearbox Boot Strike Rod
32859-03E01
Ignition Leads
22450-53J88
Ignitor Pack / Power transistor / Ignition Amplifier
22020-53J20
Injectors (Nismo)
555cc: 16600-RR420
600cc: 16600-RRR60
Key - Blank
KEY00-00118
Control Arm (NSF)
54501-69C60
Oil 7.5w-30 (5 litres)
10114-J9000
Oil Filter
15208-53J00
Oil Pressure Regulator Kit
15132-54C01
Power Rack & Pinion Boots Kit
48204-53Y25
48203-53Y25
Radiator Cap
21430-J7000
Radiator Hose - Lower
21503 54C01
Radiator Hose - Upper
21501-54C00
Restrictor Hose
22320-54C00
Rocker Cover Spark Plug Rings
13270-53J13
Spare Wheel Bolt
74810-50A00
Spark Plugs- NGK (Platinum)
PFR7B-9
Spark Plugs- NGK (Iridium)
BKR7EIX-11
Sump Plug Washer
15193-P9000
Tailgate Hinges
90400-50C00
Thrust Bearing (Clutch)
30502-1W720
Timing Chain
13028-53J03
Water Pump
21010-54C00
Water Temp Sensor (Engine Coolant)
22630-5E02
Wheel Bearings (N14)
40210-50Y00
Windscreen Mould
72761-50C20
Hub unit
402202-50y10
front hub seal
40232-50y10
dust seal
40227-50y10
front wheel bearing
40210-50y05
BRAKE COOOLING DUCT PART NUMBER
63823-54C00
GASKET-EXHAUST (elbow to downpipe)
2069158E01
Glass Window runner rubber Drivers side
80330-50C61
Clutch Master Cylinder
3061054c50
Front Caliper Seal kit
41120-11L27
Rear Caliper Seal Kit
44120-61E26
